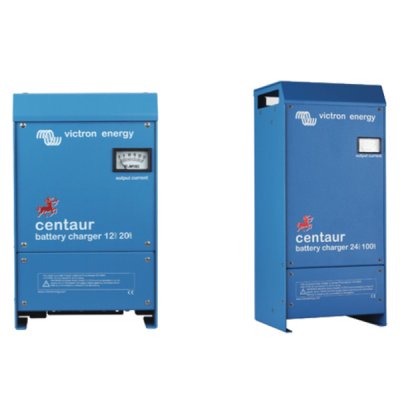

Centaur Battery Chargers

Centaur Battery Chargers

Aluminum cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and sea water. Circuit boards are protected with an acrylic coating for maximum corrosion resistance.

Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.

Three outputs that each can supply the full output current. Three isolated outputs to simultaneously charge 3 battery banks. Three stage charging with temperature compensation.

The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with -2mV/°C per cell.

A dip switch is available to select the optimum charge/float voltages for flooded lead-acid, Gel or AGM batteries. Universal 90- 265 V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation). All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50Hz or 60Hz.

  • Code: D53.02.160.010
      • Voltage: 12V/20Amp
      • Size: 355x215x110mm
  • Code: D53.02.160.026
      • Voltage: 24V/16Amp
      • Size: 355x215x110mm
  • Code: D53.02.160.012
      • Voltage: 12V/30Amp
      • Size: 355x215x110mm
  • Code: D53.02.160.028
      • Voltage: 24V/30Amp
      • Size: 426x239x135mm
  • Code: D53.02.160.014
      • Voltage: 12V/40Amp
      • Size: 426x239x135mm
  • Code: D53.02.160.030
      • Voltage: 24V/40Amp
      • Size: 505x225x130mm
  • Code: D53.02.160.016
      • Voltage: 12V/50Amp
      • Size: 426x239x135mm
  • Code: D53.02.160.018
      • Voltage: 12V/60Amp
      • Size: 426x239x135mm
  • Code: D53.02.160.032
      • Voltage: 24V/60Amp
      • Size: 505x225x130mm
  • Code: D53.02.160.020
      • Voltage: 12V/80Amp
      • Size: 505x225x130mm
  • Code: D53.02.160.034
      • Voltage: 24V/80Amp
      • Size: 505x225x230mm
  • Code: D53.02.160.022
      • Voltage: 12V/100Amp
      • Size: 505x225x130mm
  • Code: D53.02.160.036
      • Voltage: 24V/100Amp
      • Size: 505x225x230mm
  • Code: D53.02.160.024
      • Voltage: 12V/200Amp
      • Size: 505x225x230mm
